DVR General Information

This surveillance kit is made up of the COOPER XVR1B08-I recorder, which is a DVR Cooper with SMD Plus that belongs to the WizSense with Artificial Intelligence, it can reduce false alarm rates and human surveillance costs, with precise alarm for people and/or vehicles. This recorder supports 8 HDCVI 1080MP Lite channels plus 2 IP channels (6Mp maximum) and intelligent coding on its 8 channels.

Additional IP Channels

The KIT1B08-I allows the transmission of 2 additional IP channels, which support IP cameras up to 6MP, in addition to the analog camera channels.

HDD Compatibility Table

Storage is a fundamental part of a video surveillance system, for this reason we recommend that you review our compatibility list before selecting a hard drive (HDD).

General Information of the Chambers

The cameras included in this kit are the B1A21 model, it is a polycarbonate camera with HDCVI technology, it provides high definition video at a resolution of 1080P, with a 3.6mm fixed lens which provides a viewing angle of 93 degrees.

Long Distance Transmission

Thanks to Dahua's own HDCVI technology, we can transmit 1080P video over a distance of up to 800m with RG6 coaxial cable and up to 300m with UTP cable .

H.265+ Compression

Smart H.265+ is the optimized implementation of H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% compared to standard H.265 video compression.

Main Characteristics

MAIN CHARACTERISTICS OF THE DVR.

• Dual-stream H.265+/H.265 video compression.
• Supports full channel AI encoding.
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
• Supports up to 1080P Lite on HDCVI cameras.
• Up to 2 IP cameras can be added (6Mp maximum).
• Long transmission distance via coaxial cable.
• Supports up to 4 SMD Plus channels.
• Smart Coding.
• Monitor interface 1 HDMI, 1 VGA.
• Network interface 1 RJ-45 port (100 MB).
• Max. User access 128.
• 1 SATA port, up to 6TB capacity.
• Net Weight without Hard Drive 0.57 kg.
• Dimensions 198 mm × 202.9 mm × 41.5mm.

MAIN FEATURES OF THE CAMERA:

• Bullet HDCVI 1080P.
• Compatible formats HDCVI/TVI/AHD/CVBS (to change technology PFM820 is required
• Minimum illumination 0.04Lux / F1.85, 30IRE, 0Lux IR on.
• 20 meters distance from IR LEDs.
• Image Sensor 1/2.7" CMOS
• Fixed 3.6mm lens.
• Viewing angle 93°.
• Day and Night.
• Menu multilanguage osd.
• BLC, HLC, DWDR.
• 2D noise reduction.
• Smart IR.
• Power supply 12V DC ±30%
• Max power consumption 2.7w (12V DC, IR on).
• Operating conditions -40 ° C ~ + 60 ° c.
• Protection index IP67.
• Plastic Material
• Dimensions 70mm×70mm×149mm
• Net Weight 0.14kg.

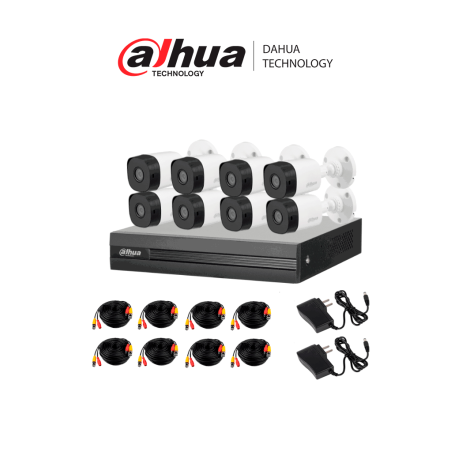

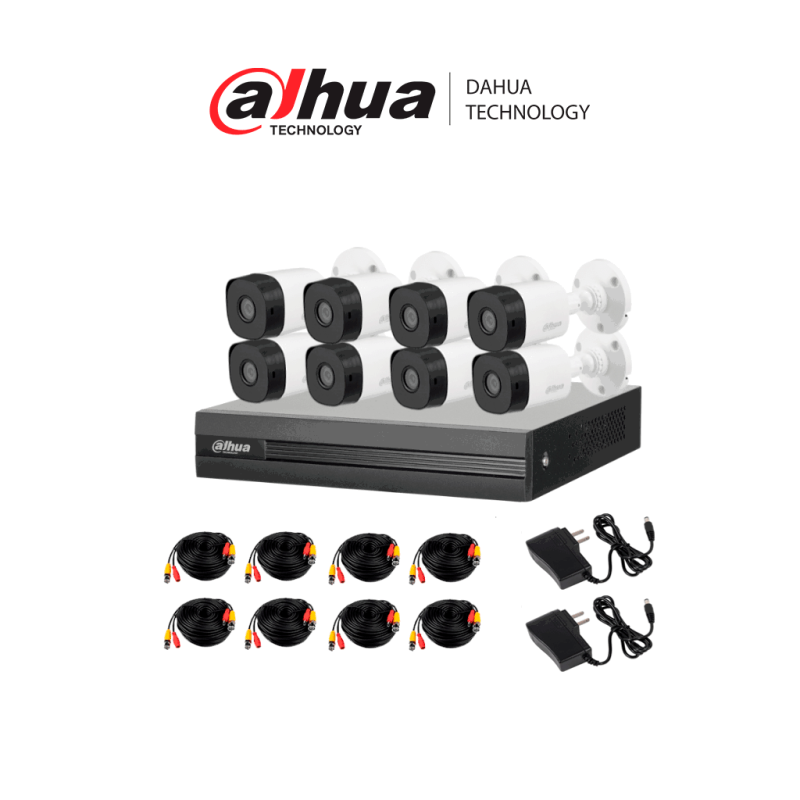

Includes

• 1 DVR COOPER XVR1B08-I.
• 8 COOPER B1A21 polycarbonate bullet cameras.
• 8 rolls of 18 meter Siamese cable.
• 2 Power source (for the 8 cameras).
• 2 Octopuses for 4 cameras each.
