General information

This surveillance kit is made up of the XVR1B04-I recorder, it belongs to the WizSense series with Artificial Intelligence, it can reduce false alarm rates and human surveillance costs, with precise alarm for people and/or vehicles. This recorder supports 4 HDCVI 1080P Lite channels plus 1 IP channel (2Mp maximum) and intelligent coding on its 4 channels.

DVR General Information

The COOPER XVR1B04-I DVR is a Penta-hybrid DVR that supports 5 different technologies: HDCVI /AHD/TVI/CVBS/IP, making it possible to upgrade a previous CCTV system or otherwise use it for a completely new CCTV system. This DVR supports SMD Plus in its 4 analog channels, allowing us to have an intelligent motion detection.

H.265+ compression

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% compared to standard H.265 video compression.

Additional IP Channel

The KITXVR1B04-I+HFW1200CM-A allows the transmission of 1 IP channel of up to 2MP, in addition to the analog camera channels.

HDD Compatibility Table

Storage is a fundamental part of a video surveillance system, for this reason we recommend that you review our compatibility list before selecting a hard drive (HDD).

General Information of the Chambers

The cameras included in this kit are the HFW1200CM-A model, it is a metal camera with 2Mp HDCVI technology with integrated audio, with an intelligent IR with a range of 30 meters.

IR intelligent

Dahua's exclusive Smart IR adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object and prevents the IR LEDs from overexposing images as the object approaches the camera.

Main Features

Main DVR Features

• Dual stream H.265+/H.265 video compression.
• Supports full channel AI encoding.
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
• Supports up to 1080P Lite on HDCVI cameras.
• You can add 1 IP cameras (2Mp maximum).
• Long transmission distance by coaxial cable.
• Supports up to 4 SMD Plus channels.
• Smart Coding.
• Monitor interface 1 HDMI, 1 VGA.
• Network interface 1 RJ-45 port (100 MB).
• Max. User access 128.
• 1 SATA port, up to 6TB capacity.
• Net Weight without Hard Drive 0.57 kg.
• Dimensions 198 mm × 202.9 mm × 41.5 mm.

Main features Camera

• Bullet HDCVI 1080P.
• Fixed Lens 2.8mm.
• Built-in Audio.
• Compatible formats HDCVI/TVI/AHD/CVBS (PFM820 is required to change technology).
• Minimum illumination 0.02Lux / F1.9, 30IRE, 0Lux IR on.
• 30 meters distance from IR LEDs.
• Image Sensor 1/2.7" CMOS.
• Day and night.
• Multi-language OSD menu.
• BLC, HLC, DWDR.
• 2D noise reduction.
• Smart IR.
• Power supply 12V DC ±30%.
• Max power consumption 2.7w (12V DC, IR on).
• Operating conditions -40°C ~ +60°C.
• Protection index IP67.
• Metallic.
• Dimensions 166.6mm×69.7mm×70.0mm.
• Net Weight 0.43kg.

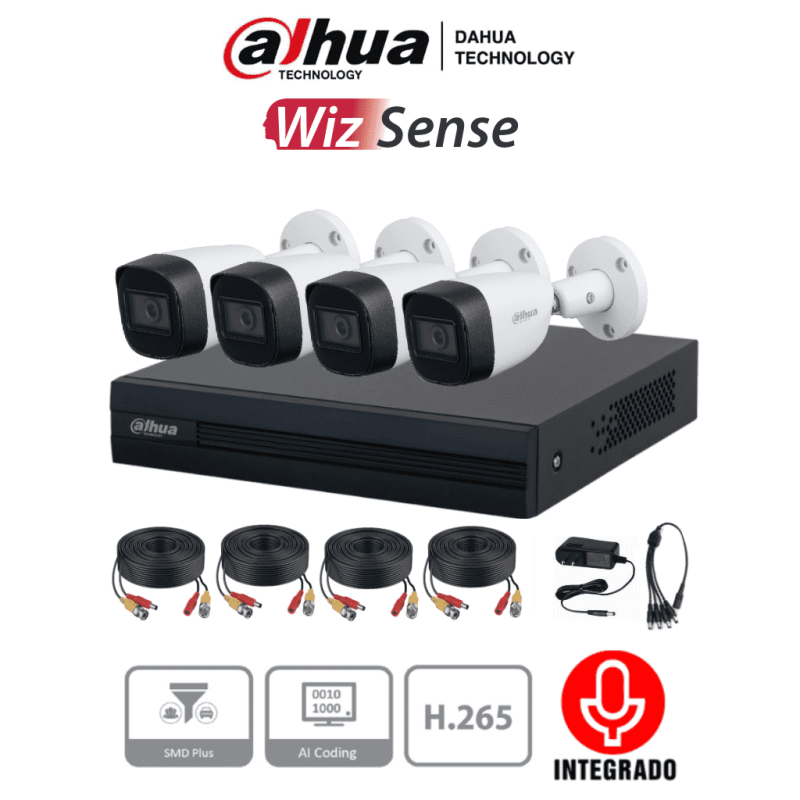

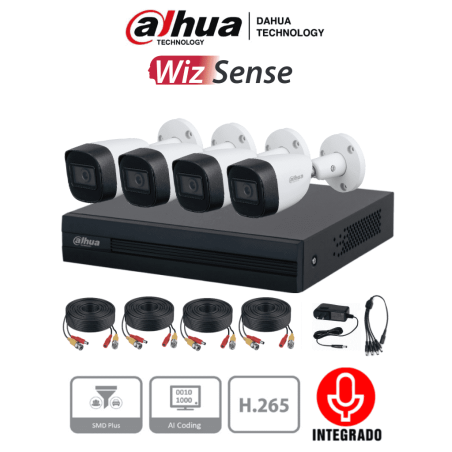

Includes

• 1 XVR1B04-I.
• 4 HFW1200CM-A Metal bullet cameras.
• 4 rolls of Siamese cable 18 meters.
• 1 Power source (for the 4 cameras).
• 1 Octopus for 4 cameras.
