General information

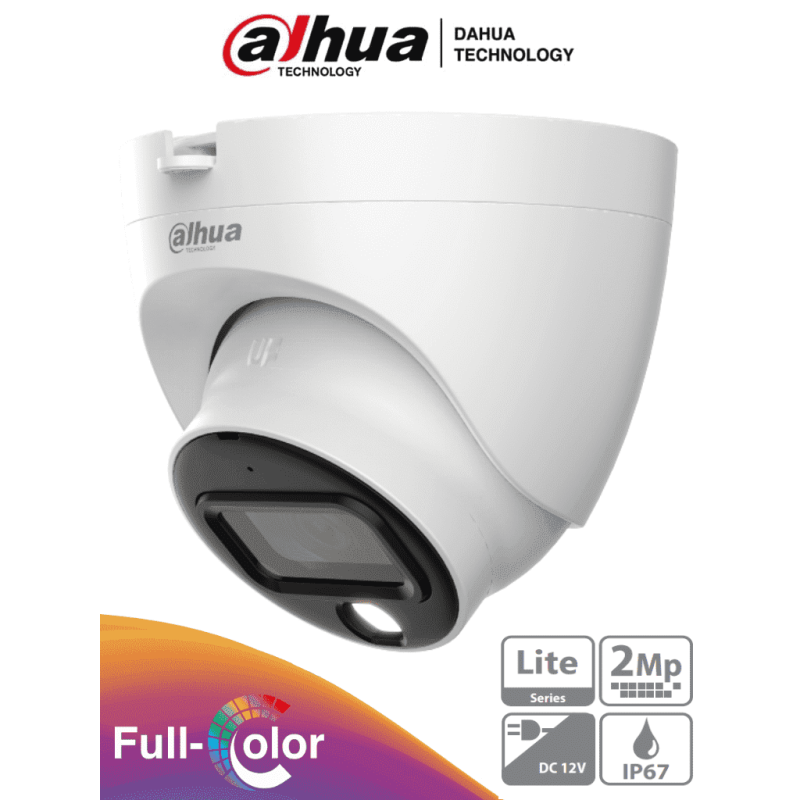

Experience 2MP Full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full color HDCVI starlight camera presents a high-quality color image with rich details even in total darkness. Offers various models of fixed lenses with multilingual OSD and switchable HD/SD output. It adopts one of the powerful warm white LED illuminators, covering an effective range of up to 20m (65.61ft). LEDs automatically turn on in the dark to capture detailed, full-color images 24/7, ensuring authentic object identification. It is an ideal choice for applications such as schools, shopping centers and parking lots.

4 Signals on 1 Coaxial Cable

HDCVI technology supports 4 signals being transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signals or triggering alarms.

Starlight in full color

The camera adopts an F1.6 large aperture lens and a 1/2.8" high-performance sensor. With a larger amount of light absorbed and advanced image processing algorithm, the camera features impressive low-light performance with a Exceptional balance between noise reduction and moving object blur.

Multiple formats

The camera supports multiple video formats, including HDCVI, CVBS and two other common HD analog formats on the market. The four formats can be changed via the OSD menu or via PFM820 (UTC controller). This feature makes the camera compatible with most end users' existing HD/SD DVRs.

IP67 protection

The camera's excellent reliability is unmatched due to its rugged design. The camera is protected against water and dust with an IP67 rating, making it suitable for indoor or outdoor environments. With a working temperature range of -40°C to +60°C (-40°F to +140°F), the camera is designed for extreme temperature environments. With an input voltage tolerance of ±30%, this camera adapts to even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Main Features

• Full color starlight
• 30m lighting distance
• Max. 30fps at 1080p
• CVI/CVBS/AHD/TVI switchable
• Fixed lens 2.8 mm
• IP67, 12V ± 30% DC

Technical specifications

• 1/2.8 inch CMOS
• 1920 (H) x 1080 (v), 2 MP
• Progressive scan system
• Electronic shutter speed: PAL: 1/25s – 1/100000s NTSC: 1/30s – 1/100000s
• S/N Ratio > 65dB
• Minimum illumination: 0.01Lux/F1.6, 0Lux white light on
• Lighting distance up to 30m.
