General information

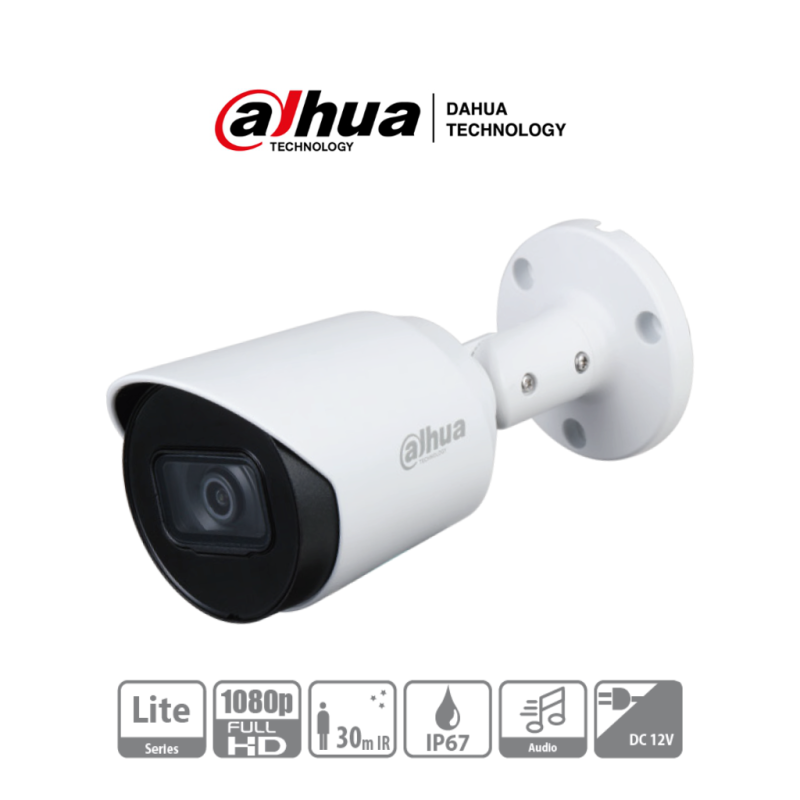

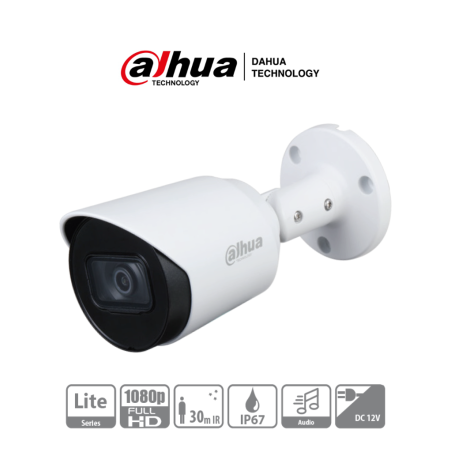

The HFW1200TA28 model is a 1080P (1920x1080) resolution camera. which has a powerful chipset that incorporates an advanced sensor to provide excellent image quality with vivid colors and abundant details, we will also obtain a wider viewing angle.

One of the advantages that this model provides us is that we will have a 103-degree vision with its 2.8 mm lens. Another feature is that it is waterproof with an IP67 protection rating, which allows it to be used outdoors, since it is designed to prevent dust and water from entering.

Another essential feature of this camera is that it has integrated audio of unparalleled quality.

Smart IR

The camera is designed with microcrystalline LED infrared illumination for better low-light performance. Smart IR is a technology to ensure brightness uniformity in B/W images in low lighting conditions. Dahua's exclusive Smart IR adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object, and prevents the IR LEDs from overexposure of images when the object approaches the camera.

Multi-language OSD Menu

The OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes settings such as backlight mode, day/night, white balance, privacy mask and shadow detection. The camera supports 11 languages for OSD menu, namely Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection

The camera's excellent reliability is unsurpassed due to its robust design. The camera is protected against water and dust with an IP67 rating, making it suitable for indoor or outdoor environments, plus it supports a working temperature range of -40°C to +60°C (-40°F to +140°F).

With an input voltage tolerance of ± 30%, this camera adapts to even the most unstable power conditions. Its lightning speed of 4KV provides protection from the effects of lightning.

Main features

• D-WDR - Wide Dynamic Range of Lighting
• 2D-DNR - Digital Image Noise Reduction
• Anti-Flicker - Technology eliminates the image flicker effect that is tiring to the eyes
• BLC/HLC - backlight/highlight compensation
• ICR - Mechanical Infrared Filter
• AGC - Automatic Image Gain Adjustment
• Auto white balance
• Privacy zones
• Mirror - Mirror Image
• Sharpness - Sharpening of image contours

Specifications

• 1/2.7 " CMOS
• 2 megapixels
• Lenses: 2.8mm
• Viewing angle: 103°
• IR illuminator range: 30m
• IR Illuminator Power Setting: Automatic
• Video output: AHD / HD-CVI / HD-TVI / PAL, 1 Vpp
• Power: 12 V DC / 300 mA
• Housing: Aluminum
• Protection grade: IP67
