General information

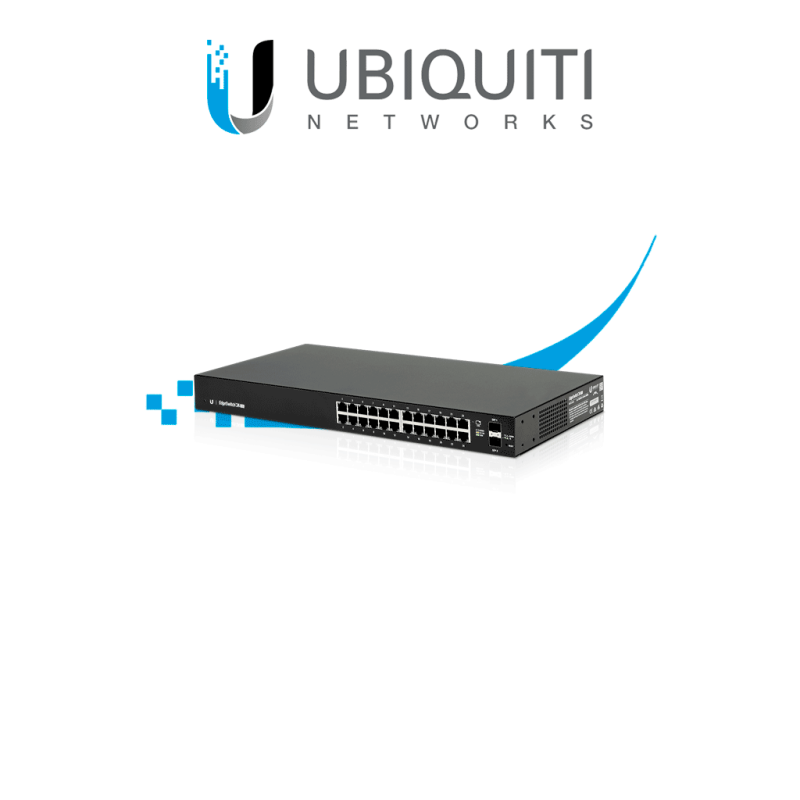

Ubiquiti's EdgeSwitch Lite switches are available in 24- and 48-port versions with Gigabit capabilities, allowing for superior, robust performance and intelligent transfer capacity for network growth.

Main features.

Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports and 25W power supply.

(24) GbE RJ45 ports

(2) SFP ports

Wall or rack mounting

Robust business models.

EdgeSwitch Lite equipment has the ability to process traffic simultaneously on all ports without packet loss. It has a total non-blocking throughput of up to 26Gbps in its 24-port version.

Business class features.

Thanks to their capacity and functionality, the EdgeSwitch Lite models have advanced layer-2 management features and even have layer-3 routing capacity.

Main fiber optic links.

Thanks to the two SFP ports, these devices support UPLINK (data uplink) links of up to 1Gbps in the 24-port switches, while the 48-port devices have higher UPLINK capabilities, i.e. support SFP+ with speeds of up to 10Gbps.

Main Features

Mechanic

• Dimensions: 443 x 43 x 221 mm (17,44 x 1,69 x 8,7 inches)
• Weight: Without rack-mount brackets: 2.51 kg (5.53 lb), with rack-mount brackets: 2.6 kg (5.7 lb).

Hardware

• Network interfaces: (24) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ ports
• Management interface: (1) RJ45 serial port, Ethernet in/out band
• Total non-blocking performance: 26 Gbps
• Switching capacity: 52 Gbps
• Resend fee: 38.69 megabytes per second
• Max. Power consumption CA25W

Feeding method

• CA - 100-240 VAC/50-60 Hz, universal input
• CC - DC 25 W, 25 to 16 V, with 2.5 mm DC power inline connector
• Power supply: AC/DC, internal, 25 W DC
• Rack mounting: Yes, 1U high
• ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
• Shock and vibration: ETSI Standard 300-019-1.4
• Operating temperature: -5 a 40 °C (23 a 104 °F)
• Operating humidity: 5 to 95% non-condensing
