2.4GHz 300Mbps 9dBi Outdoor CPE

CPE210

AC1200 Simultaneous Dual Band Wireless Router (Archer C6), 300 Mbps in 2.4Ghz and 867 Mbs in 5Ghz, has (4) 10/100/1000 Mbps LAN, (1) 10/100/1000 Mbs WAN.

The Archer C6 creates a reliable, ultra-fast network with 802.11ac Wi-Fi technology. Ideal for HD video streaming and lag-free online gaming.

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna.
• Adjustable transmission power from 0 to 25dBm/500mw.
• System-level optimizations for more than 5km long-range wireless transmission.
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications.
• Centralized Management System – Pharos Control.
• AP / Client / AP Router / AP Client Router (WISP) operation modes.
• Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.

What is this product for?

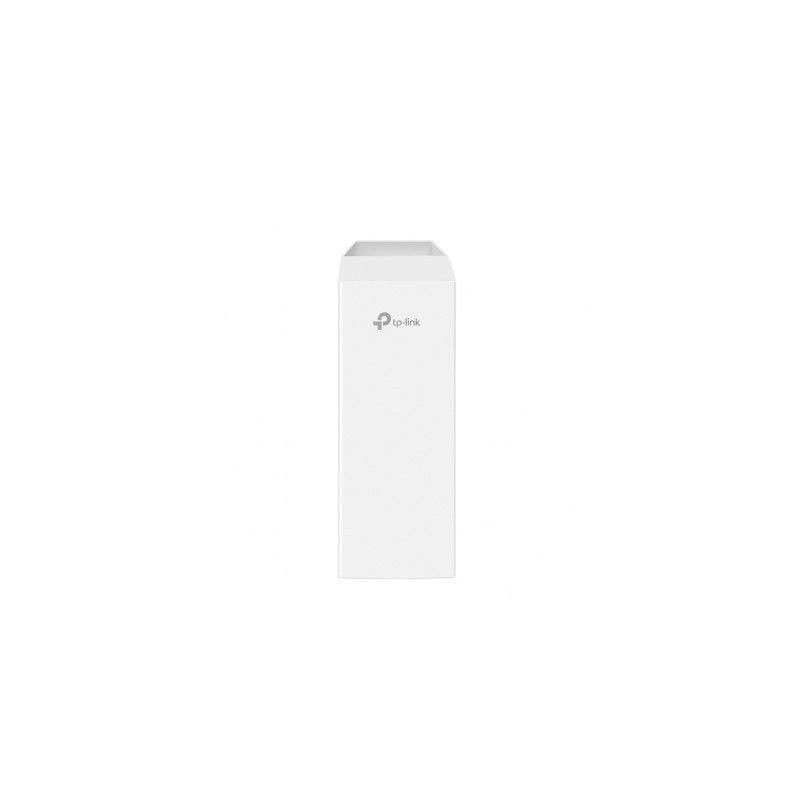

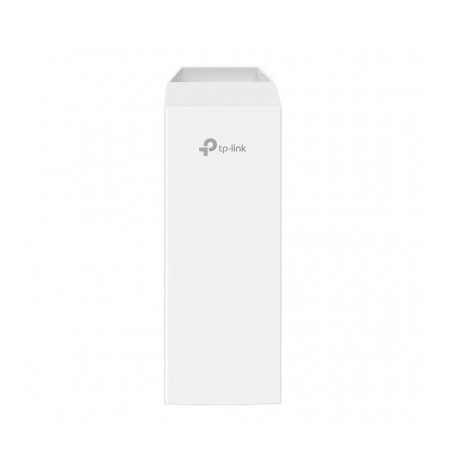

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware

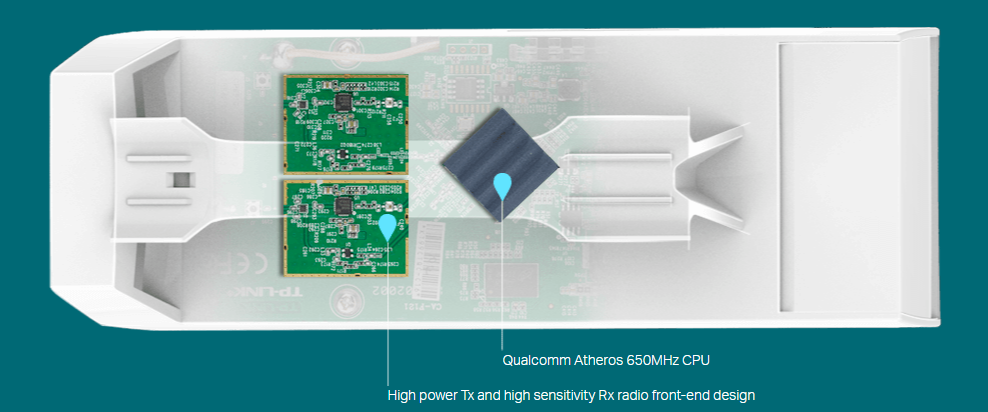

With Qualcomm Atheros level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

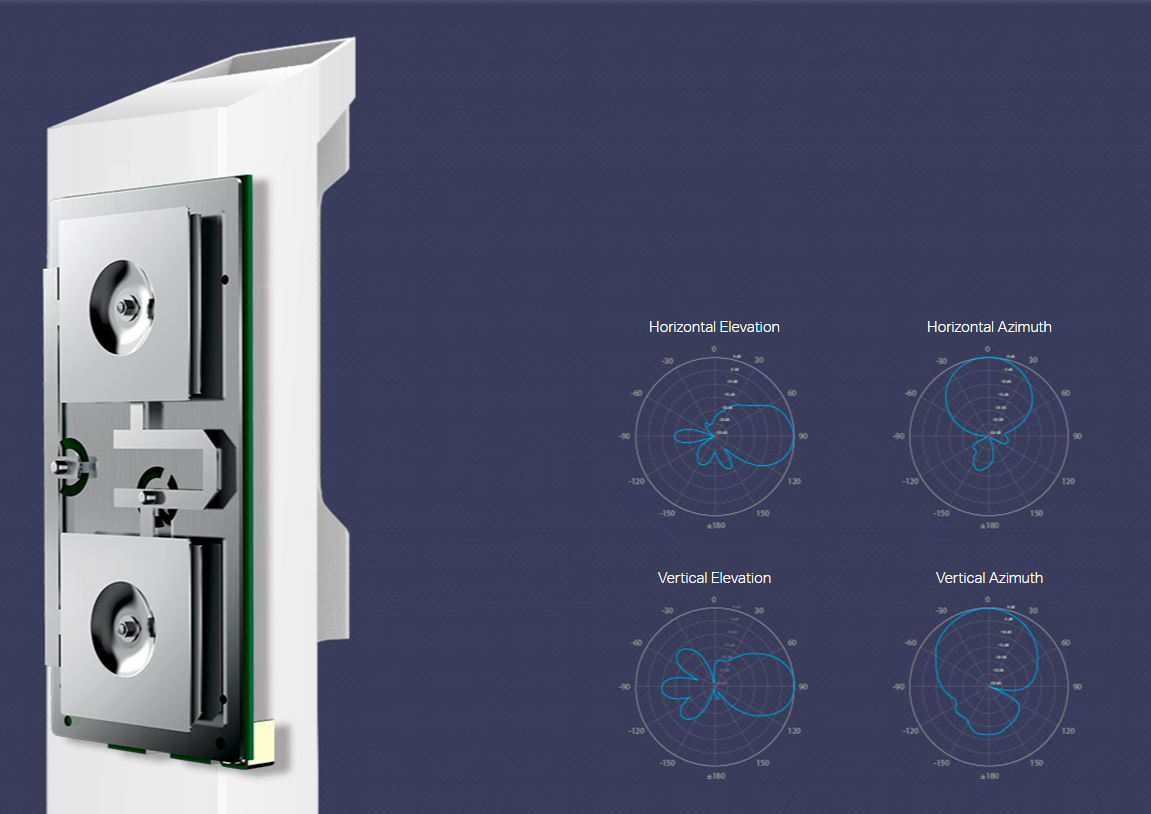

Advanced Antenna System

• Built-in High Gain Dual-Polarized Antenna.
• Dedicated metal reflector ensures higher gain and lower noise interference.

5km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

Professional outdoor design

The CPE210 is designed to work in harsh environments, including some of the most hostile climate environments in the world.

Weatherproof design

With its outdoor, weather-proof design that encompasses an industrial-level design, the CPE210 can continue working in different weather conditions, such as sunny days, rain, wind, snow or in environments with extremely low or high ambient temperatures ( 30°C~70°C).

Double protection against ESD attacks

In addition to being a grounded terminal, the CPE210 offers other ways to eliminate ESD (electrostatic discharge) attacks using the PoE adapter and grounded Ethernet cable. The CPE210 also has other safety measures that keep it safe from electrostatic attacks up to 15KV ESD and lightning protection up to 6000V to work safely.

Tecnología TP-LINK MAXtream TDMA

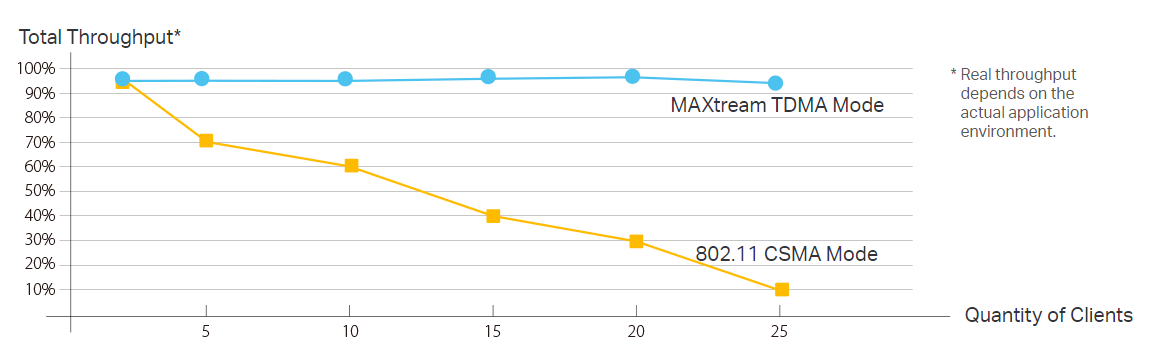

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.
